Brand：NTH

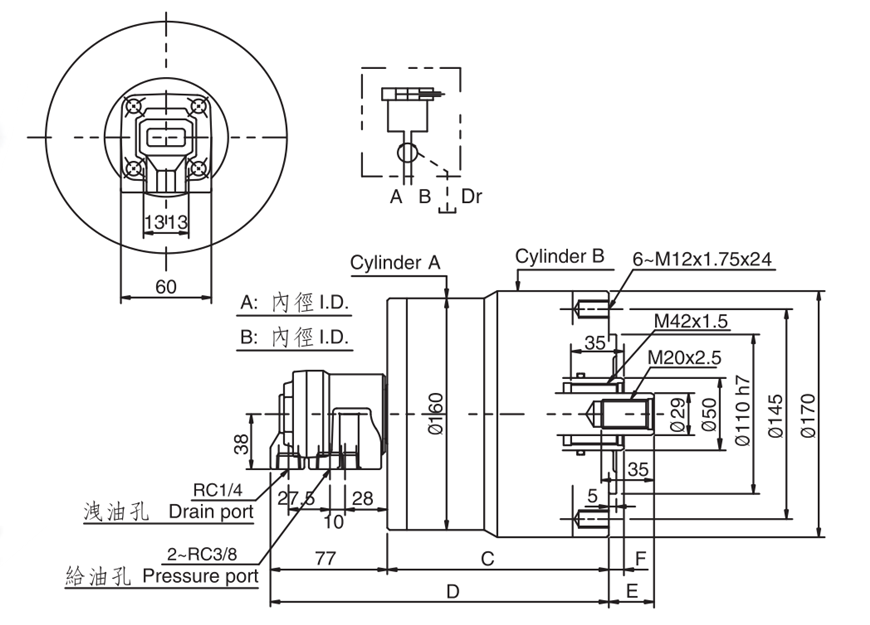

The double rods rotary cylinder is the type of short form, light weight.
The drain port should be independently connected to oil tank to avoid back pressure.
Size unit: mm
|
Spec/Model
|
Piston area cm2
Extend
A
|
Piston area cm2
Extend
B
|
Piston area cm2
Retract
A
|
Piston area cm2
Retract
B
|
|
SRD-120N
|
122.7
|
126.1
|
116.1
|
113.1
|
|
SRD-125N
|
122.7
|
126.1
|
116.1
|
113.1
|
|
Spec /Model
|
Piston stroke
mm
|
Max RPM
|
Max.Operating Pressure
Mpa(kgf/cm2)
|
Inertia moment
kg*m2
|
Weight
kg
|
|
SRD-120N
|
20
|
5000
|
3.0(30)
|
0.14
|
11.2
|
|
SRD-125N
|
25
|
5000
|
3.0(30)
|
0.15
|
11.4
|
|
Spec/Model
|
A
|
B
|
C
|
D
|
E Max.
|
E Min.
|
F Max.
|
F Min.
|
|
SRD-120N
|
130
|
125
|
137
|
215
|
60
|
40
|
35
|
15
|
|
SRD-125N
|
130
|
125
|
147
|
224
|
55
|
30
|
35
|
10
|
Subject to technology changes without prior information
Non-standard requirements can be made
