Brand：NTH
High rotary speed single piston rotary air cylinder.
The valve parts is special designed, The air consumption can be saved.
During working, The FRL units should be used.
Size unit: mm
|
Spec/Model
|
Piston area cm2
Extend
|
Piston area cm2
Retract
|
Piston stroke
mm
|
Max. speed RPM
|
|
RA-100
|
77
|
74.4
|
15
|
6000
|
|
RA-130
|
131.2
|
124.7
|
15
|
5000
|
|
RA-170
|
225.4
|
219
|
20
|
5000
|
|
RA-220
|
378.6
|
369.3
|
25
|
4000
|
|
RA-270
|
571
|
562.9
|
30
|
3000
|
|
Spec/Model
|
Max.Operating Pressure
Mpa(kgf/cm2)
|
Inertia moment
kg*m2
|
Weight
kg
|
(P
6kgf/cm2)
Air consumption
(ml/sec)
|
For Chuck
|
|
RA-100
|
0.8(8)
|
0.03
|
4.5
|
400
|
3"
|
|
RA-130
|
0.8(8)
|
0.05
|
5.2
|
400
|
4"5"
|
|
RA-170
|
0.8(8)
|
0.18
|
8.5
|
400
|
6"
|
|
RA-220
|
0.8(8)
|
0.36
|
14.5
|
400
|
8"10"
|
|
RA-270
|
0.8(8)
|
0.75
|
18.4
|
400
|
12"
|
|

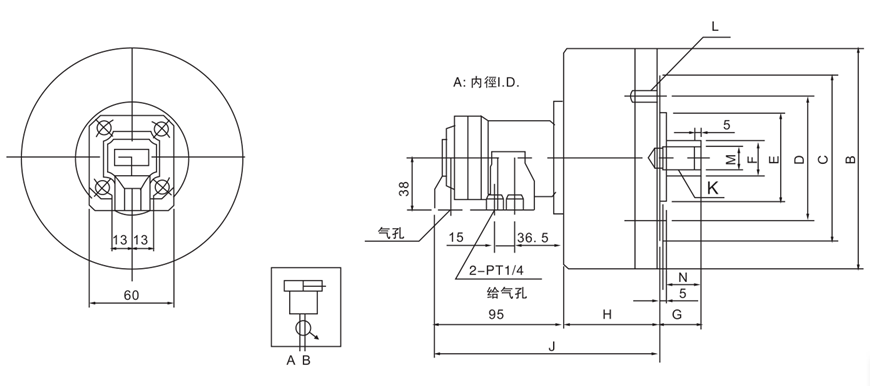

Spec/ Model
|
A
|
B
|
C
|
D
|
E H7
|
F
|
G Max
|
G Min
|
H
|
J
|
K
|
L
|
M(H8)
|
N
|
|
RA-100
|
100
|
130
|
-
|
80
|
60
|
22
|
50
|
35
|
65
|
160
|
M12×1.75
|
6-M8×16
|
13
|
25
|
|
RA-130
|
130
|
160
|
120
|
90
|
65
|
25
|
45
|
30
|
70
|
165
|
M16×2.0
|
6-M8×16
|
17
|
30
|
|
RA-170
|
170
|
200
|
140
|
100
|
80
|
25
|
45
|
25
|
85
|
180
|
M16×2.0
|
6-M10×18
|
17
|
30
|
|
RA-220
|
220
|
255
|
170
|
130
|
110
|
30
|
50
|
25
|
91
|
186
|
M20×2.5
|
6-M12×20
|
21
|
35
|
|
RA-270
|
270
|
305
|
190
|
130
|
110
|
35
|
55
|
25
|
105
|
200
|
M24×3.0
|
6-M12×20
|
25
|
40
|
Subject to technology changes without prior information
Non-standard requirements can be made
