Brand：NTH
Used when high accuracy of machining is needed.
Other short taper mounting type like A/C/D is avaliable.
?Standard accessories:
?1 set of outside hard solid jaws
?1 set of inside hard solid jaws
1 wrench
?1 set of mounting screws.
Optional accessories:
?1 set of hard master jaws
1 set of top soft jaws
?1 set of soft 2-piece jaws(hard master jaw + top soft jaw)
?Specification? ?UNIT：mm
|
MODEL/SPEC
|
CHUCK SIZE
mm
|
Max.torque
Nm
|
Max. RPM
|
Net Weight
Kgs
|
|
SC11-80
|
80
|
40
|
4000
|
1.9
|
|
SC11-100
|
100
|
60
|
3500
|
3.2
|
|
SC11-125
|
125
|
100
|
3000
|
5
|
|
SC11-130
|
130
|
100
|
3000
|
5.6
|
|
SC11-160
|
160
|
160
|
2500
|
8.8
|
|
SC11-165
|
165
|
160
|
2500
|
9.5
|
|
SC11-190
|
190
|
250
|
2000
|
13.8
|
|
SC11-200
|
200
|
250
|
2000
|
15.5
|
|
SC11-230
|
230
|
250
|
2000
|
16.5
|
|
SC11-240
|
240
|
320
|
1600
|
26
|
|
SC11-250
|
250
|
320
|
1600
|
27.5
|
|
SC11-315
|
315
|
400
|
1200
|
47
|
|
SC11-320
|
320
|
400
|
1200
|
47.5
|
|
SC11-325
|
325
|
400
|
1200
|
49
|
|
SC11-380
|
380
|
500
|
1000
|
68
|
|
SC11-400
|
400
|
500
|
1000
|
73
|
|
SC11-500
|
500
|
630
|
800
|
121
|
|
SC11-630
|
630
|
800
|
800
|
200
|
|
SC11-800
|
800
|
800
|
500
|
256
|
|
SC11-1000
|
1000
|
1200
|
400
|
750
|
|
SC11-1250
|
1250
|
1300
|
320
|
-
|
|

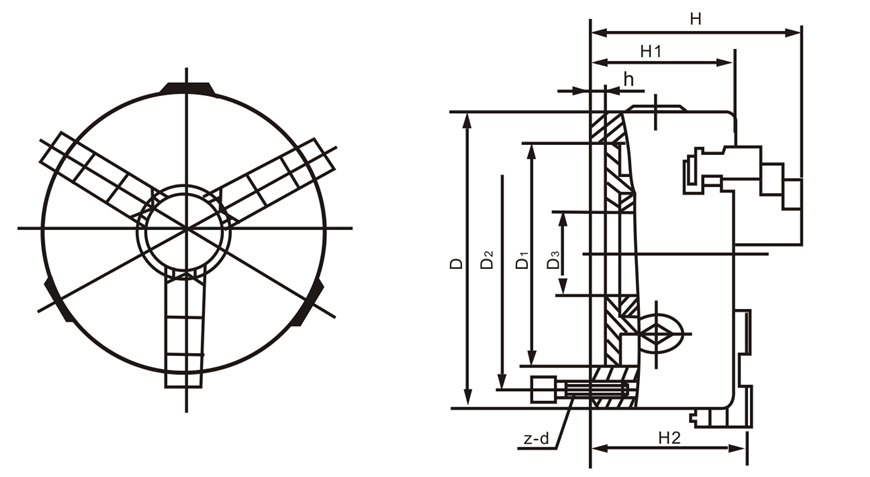

MODEL/SPEC
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
|
SC11-80
|
55
|
66
|
16
|
66.5
|
50
|
4
|
3-M6
|
|
SC11-100
|
72
|
84
|
22
|
74.5
|
55
|
3
|
3-M8
|
|
SC11-125
|
95
|
108
|
30
|
84.5
|
58
|
4
|
3-M8
|
|
SC11-130
|
100
|
115
|
30
|
86.5
|
60
|
5
|
3-M8
|
|
SC11-160
|
130
|
142
|
45
|
94
|
65
|
5
|
3-M8
|
|
SC11-165
|
130
|
145
|
45
|
94
|
65
|
5
|
3-M8
|
|
SC11-190
|
155
|
172
|
55
|
105
|
75
|
5
|
3-M10
|
|
SC11-200
|
165
|
180
|
65
|
109
|
75
|
6
|
3-M10
|
|
SC11-230
|
190
|
210
|
70
|
120
|
80
|
8
|
3-M12
|
|
SC11-240
|
195
|
215
|
70
|
120
|
80
|
5
|
3-M12
|
|
SC11-250
|
206
|
226
|
80
|
120
|
80
|
6
|
3-M12
|
|
SC11-315
|
260
|
285
|
100
|
147.5
|
90
|
6
|
3-M16
|
|
SC11-320
|
270
|
290
|
100
|
147.5
|
90
|
6
|
3-M16
|
|
SC11-325
|
272
|
296
|
100
|
147.5
|
90
|
6
|
3-M16
|
|
SC11-380
|
325
|
350
|
135
|
155.7
|
98
|
6
|
3-M16
|
|
SC11-400
|
340
|
368
|
130
|
173.7
|
100
|
6
|
3-M16
|
|
SC11-500
|
440
|
465
|
210
|
202
|
115
|
6
|
6-M16
|
|
SC11-630
|
560
|
595
|
270
|
218
|
133.5
|
7
|
6-M16
|
|
SC11-800
|
710
|
760
|
385
|
250
|
161
|
8.5
|
6-M20
|
|
SC11-1000
|
905
|
950
|
460
|
310
|
198
|
9
|
6-M24
|
|
SC11-1250
|
1060
|
1150
|
550
|
341
|
228
|
11
|
6-M30
|
?Subject to technology changes without prior information
?Non-standard requirements can be made
