規格/?Specification ?單位/UNIT：mm.
|
型式/規格
MODEL/SPEC
|
最高轉速
Max. RPM
|
外徑夾持范圍
O.D.Clamping Range
mm
|
內徑夾持范圍
I.D.Clamping Range
mm
|
|
3DACT-04
|
5200
|
?3-?95
|
?30-?83
|
|
3DACT-05
|
4800
|
?3-?160
|
?35-?111
|
|
3DACT-06
|
4200
|
?4-?160
|
?46-?155
|
|
3DACT-08
|
3500
|
?4-?197
|
?51-?184
|
|
3DACT-10
|
2600
|
?6-?267
|
?70-?252
|
|
3DACT-12
|
2200
|
?10-?325
|
?81-?308
|
|
3DACT-15
|
1600
|
?14-?428
|
?106-?410
|
|

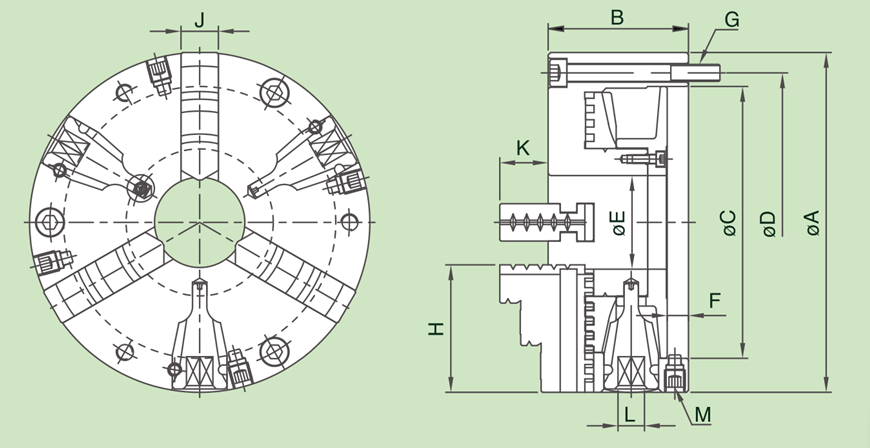

型式/規格
MODEL/SPEC
|
A
|
B
|
C
|
D
|
E
|
G
|
F
|
H
|
J
|
K
|
M
|
L
|
|
3DACT-04
|
100
|
60
|
70
|
83
|
20
|
3-M8×1.25P
|
10
|
42
|
14
|
17
|
4-M8×1.25P
|
8
|
|
3DACT-05
|
125
|
65
|
95
|
108
|
32
|
3-M8×1.25P
|
10.5
|
50
|
16
|
20
|
4-M10×1.5P
|
8
|
|
3DACT-06
|
160
|
72.5
|
125
|
140
|
42
|
3-M10×1.5P
|
12
|
65
|
19
|
23
|
4-M12×1.75P
|
10
|
|
3DACT-08
|
200
|
82.5
|
160
|
176
|
55
|
3-M10×1.5P
|
12
|
75
|
22
|
28
|
4-M12×1.75P
|
11
|
|
3DACT-10
|
250
|
91
|
200
|
224
|
76
|
3-M12×1.75P
|
13
|
98
|
28
|
38.5
|
4-M12×1.75P
|
12
|
|
3DACT-12
|
315
|
103
|
260
|
286
|
103
|
3-M16×2P
|
14
|
110
|
30
|
44.5
|
4-M12×1.75P
|
14
|
|
3DACT-15
|
400
|
122
|
330
|
362
|
136
|
3-M16×2P
|
15
|
146
|
40
|
56
|
4-M12×1.75P
|
17
|
保留技術更改的權利,恕不另行通知?Subject to technology changes without prior information
非標需求可定做?Non-standard requirements can be made
