Specification UNIT：mm
|
MODEL/SPEC
|
Max. RPM
|
O.D.Clamping Range
mm
|
I.D.Clamping Range
mm
|
|
3DAKT-05
|
4800
|
?3-?121
|
?44-?120
|
|
3DAKT-06
|
4200
|
?8-?169
|
?50-?158
|
|
3DAKT-08
|
3500
|
?8-?206
|
?58-?191
|
|
3DAKT-10
|
2600
|
?12-?266
|
?77-?250
|
|
3DAKT-12
|
2200
|
?15-?340
|
?85-?318
|
|
3DAKT-15
|
1600
|
?30-?440
|
?123-?416
|
|

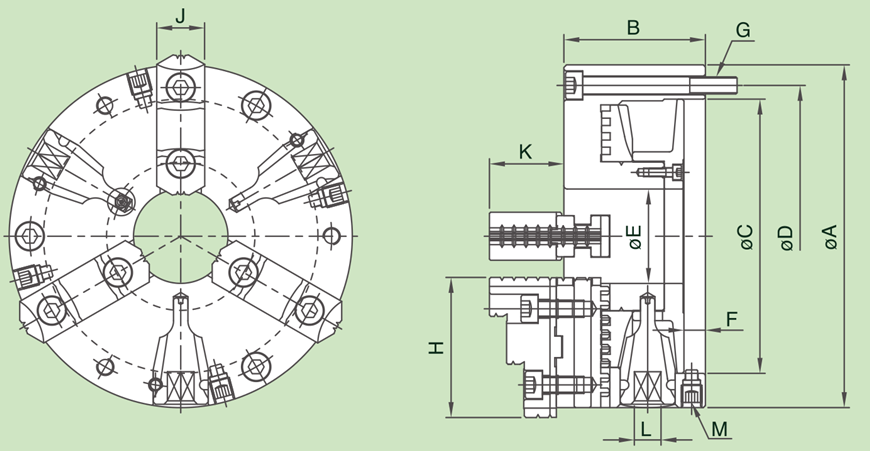

MODEL/SPEC
|
A
|
B
|
C
|
D
|
E
|
G
|
F
|
H
|
J
|
K
|
M
|
|
3DAKT-05
|
125
|
65
|
95
|
108
|
32
|
3-M8×1.25P
|
10.5
|
57
|
24
|
36
|
4-M10×1.5P
|
|
3DAKT-06
|
160
|
72.5
|
125
|
140
|
42
|
3-M10×1.5P
|
12
|
68
|
26
|
38.5
|
4-M12×1.75P
|
|
3DAKT-08
|
200
|
82.5
|
160
|
176
|
55
|
3-M10×1.5P
|
12
|
82
|
28
|
43
|
4-M12×1.75P
|
|
3DAKT-10
|
250
|
91
|
200
|
224
|
76
|
3-M12×1.75P
|
13
|
102
|
35
|
54.5
|
4-M12×1.75P
|
|
3DAKT-12
|
315
|
103
|
260
|
286
|
103
|
3-M16×2P
|
14
|
117.5
|
40
|
56.5
|
4-M12×1.75P
|
|
3DAKT-15
|
400
|
122
|
330
|
362
|
136
|
3-M16×2P
|
15
|
150
|
50
|
74.5
|
4-M12×1.75P
|
Subject to technology changes without prior information
Non-standard requirements can be made
