Brand：NTH
Multiple contact points clamping, it can avoid the deformation issue during clamping process for thin wall pipe or ring like workpiece.
|
Spec/ Model
|
Plunger stroke
(mm)
|
Jaw stroke (Dia)
(mm)
|
Max clamping dia
(mm)
|
Min clamping dia
(mm)
|
Max.D.B.Pull
KN(kgf)
|
|
BS-206 A5
|
12
|
5.6
|
168
|
15
|
17.1(1750)
|
|
BS-208 A6
|
16
|
7.4
|
210
|
13
|
34.3(3500)
|
|
BS-210 A8
|
19
|
8.8
|
254
|
46
|
34.3(3500)
|
|
BS-210 A8
|
30
|
22
|
315
|
37
|
42.6(4380)
|
|
Spec/Model
|
Max clamping force
KN(kgf)
|
Max RPM
|
Inertia
kg*m2
|
Weight
kg
|
Matched cylinders
|
Max.pressure
Mpa(kgf/cm2)
|
|
BS-206 A5
|
35.8(3650)
|
6000
|
0.06
|
15
|
H-1246
|
2.0(20)
|
|
BS-208 A6
|
85.8(8750)
|
5000
|
0.19
|
25
|
H-1552
|
2.8(28)
|
|
BS-210 A8
|
85.8(8750)
|
4200
|
0.35
|
42
|
H-1875
|
2.1(21)
|
|
BS-210 A8
|
80.7(8241)
|
3300
|
0.95
|
66
|
H-2091
|
2.1(21)
|
|

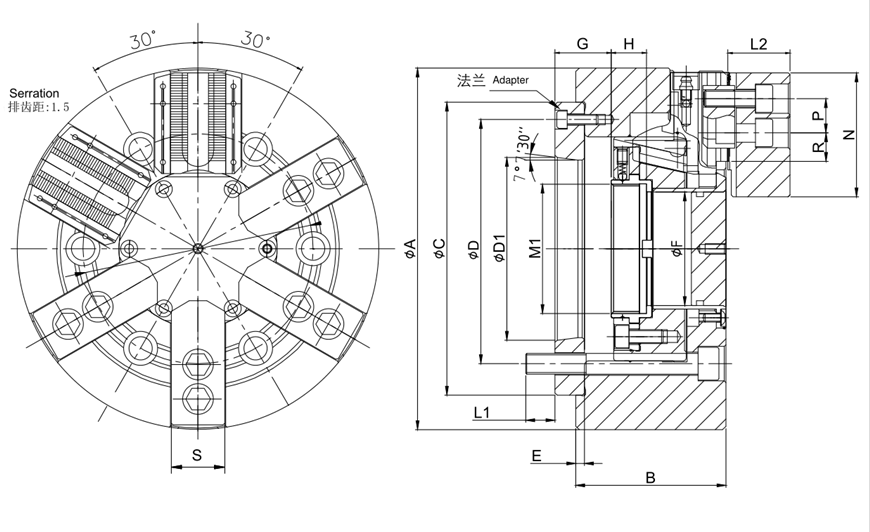

Spec/ Model
|
A
|
B
|
C(H6)
|
D
|
D1
|
E
|
F
|
G max
|
G min
|
|
BS-206 A5
|
169
|
81
|
140
|
104.78
|
82.56
|
5
|
45
|
26
|
14
|
|
BS-208 A6
|
210
|
87
|
170
|
133.35
|
106.38
|
5.5
|
66
|
31.5
|
15.5
|
|
BS-210 A8
|
254
|
100
|
220
|
171.45
|
139.72
|
5.5
|
86
|
26.5
|
7.5
|
|
BS-210 A8
|
320
|
113
|
300
|
235
|
196.869
|
6
|
91
|
37
|
7
|
|
Spec/Model
|
H
|
L1
|
L2
|
M1
|
N
|
P
|
R max
|
R min
|
S
|
|
BS-206 A5
|
19
|
18
|
30
|
M55*2.0
|
62
|
14
|
19.8
|
7.8
|
25
|
|
BS-208 A6
|
20.5
|
17
|
36
|
M75*2.0
|
73
|
20
|
22.8
|
9.3
|
31
|
|
BS-210 A8
|
25
|
24.5
|
37
|
M95*2.0
|
95
|
25
|
29.8
|
14.8
|
35
|
|
BS-212 A8
|
28
|
22
|
42
|
M130*2.0
|
110
|
30
|
29.8
|
14.3
|
40
|
Subject to technology changes without prior information
Non-standard requirements can be made
