Brand：NTH
Non through hole crank type single jaw chuck, very long jaw stroke
Suitable for clamping the jig.
High rigidity construction and high clamping accuracy.
Size Unit: mm
|
Spec/ Model
|
Plunger stroke
mm
|
Jaw stroke Dia.
mm
|
Max chucking Dia.
mm
|
Min chucking Dia.
mm
|
Max.D.B.Pull
KN(kgf)
|
Max clamping force
KN(kgf)
|
|
1T-06 A5
|
20
|
16
|
165
|
17
|
12.3(1250)
|
27.3(2780)
|
|
1T-08 A5
|
25
|
20
|
210
|
20
|
15.7(1600)
|
37.2(3800)
|
|
1T-08 A6
|
25
|
20
|
215
|
20
|
15.7(1600)
|
37.2(3800)
|
|
1T-10 A6
|
30
|
24
|
254
|
25
|
21.6(2200)
|
48.5(4950)
|
|
1T-10 A8
|
30
|
24
|
254
|
25
|
21.6(2200)
|
48.5(4950)
|
|
Spec/Model
|
Max RPM
|
Inertia moment
kg*m2
|
Weight
kg
|
Weight(Ad.)
kg
|
Matched cylinders
|
Max Pressure
Mpa(kgf)
|
|
1T-06 A5
|
3800
|
0.05
|
12.8
|
14.6
|
S-100R
|
1.7(17.5)
|
|
1T-08 A5
|
3000
|
0.15
|
24.6
|
27.4
|
S-125R
|
1.4(14.3)
|
|
1T-08 A6
|
3000
|
0.15
|
24.6
|
25.6
|
S-125R
|
1.4(14.3)
|
|
1T-10 A6
|
2400
|
0.28
|
34
|
41
|
S-125R
|
1.9(19.5)
|
|
1T-10 A8
|
2400
|
0.28
|
34
|
39.5
|
S-125R
|
1.9(19.5)
|
|

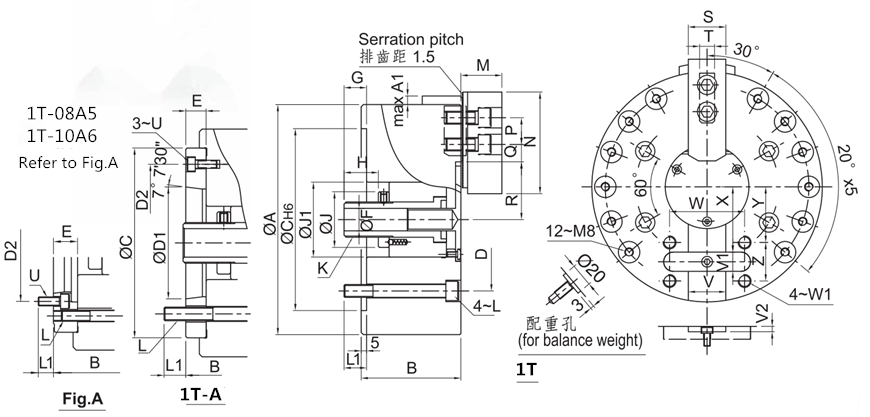

Spec/Model
|
A
|
A1
|
B
|
B(ad.)
|
C
|
D
|
D1
|
D2
|
E
|
F
|
G max
|
G min
|
H
|
J
|
J1
|
K max
|
L
|
L1
|
|
1T-06 A5
|
165
|
9.5
|
80
|
90
|
140
|
104.8
|
82.56
|
116
|
15
|
21
|
37
|
17
|
25
|
46
|
54
|
M30×1.5
|
16
|
16
|
|
1T-08 A5
|
210
|
8
|
93
|
111
|
170
|
133.4
|
106.38
|
104.8
|
23
|
21
|
46
|
21
|
32
|
52
|
70
|
M33×1.5
|
21
|
19
|
|
1T-08 A6
|
210
|
8
|
93
|
105
|
170
|
133.4
|
106.38
|
150
|
17
|
21
|
46
|
21
|
32
|
52
|
70
|
M33×1.5
|
21
|
20
|
|
1T-10 A6
|
254
|
13.5
|
108
|
128
|
220
|
171.4
|
139.72
|
133.4
|
25
|
34
|
47
|
17
|
30
|
62
|
90
|
M45×1.5
|
25
|
20
|
|
1T-10 A8
|
254
|
13.5
|
108
|
121
|
220
|
171.4
|
139.72
|
190
|
18
|
34
|
47
|
17
|
30
|
62
|
90
|
M45×1.5
|
25
|
27
|
|
Spec/Model
|
M
|
N
|
P
|
Q max
|
Q min
|
R max
|
R min
|
S
|
T
|
U
|
V(H6)
|
V1(9)
|
V2
|
W
|
W1
|
X
|
Y
|
Z
|
|
1T-06 A5
|
37
|
73
|
20
|
19.75
|
7.75
|
46
|
30
|
31
|
12
|
M6
|
30
|
15
|
4.5
|
64
|
M10
|
45
|
36
|
30
|
|
1T-08 A5
|
38
|
95
|
25
|
25.25
|
10.25
|
54
|
34
|
35
|
14
|
M6
|
35
|
18
|
4.5
|
70
|
M12
|
61
|
52
|
36
|
|
1T-08 A6
|
38
|
95
|
25
|
25.25
|
10.25
|
54
|
34
|
35
|
14
|
M6
|
35
|
18
|
4.5
|
70
|
M12
|
61
|
52
|
36
|
|
1T-10 A6
|
43
|
110
|
30
|
33.75
|
11.25
|
67
|
43
|
40
|
16
|
M8
|
40
|
20
|
5
|
90
|
M12
|
71
|
58.5
|
45
|
|
1T-10 A8
|
43
|
110
|
30
|
33.75
|
11.25
|
67
|
43
|
40
|
16
|
M8
|
40
|
20
|
5
|
90
|
M12
|
71
|
58.5
|
45
|
Subject to technology changes without prior information
Non-standard requirements can be made
