INTERCHANGEABLE MEDIUM DUTY LIVE CENTER
Click on product image magnification
Online inquiry
Type: Interchangeble live center
Duty: Medium
Application CNC lathe and high speed lathe or other lathe machine.
Working Usage Applicable for small dia. and the length less than 300mm ordinary turning process.
Structure Combination of thrust bearing and with the design of double supporting point.
Accessories 48 type Tips and 61 type pin punch.
TIR Less than 0.005mm
Notes：
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

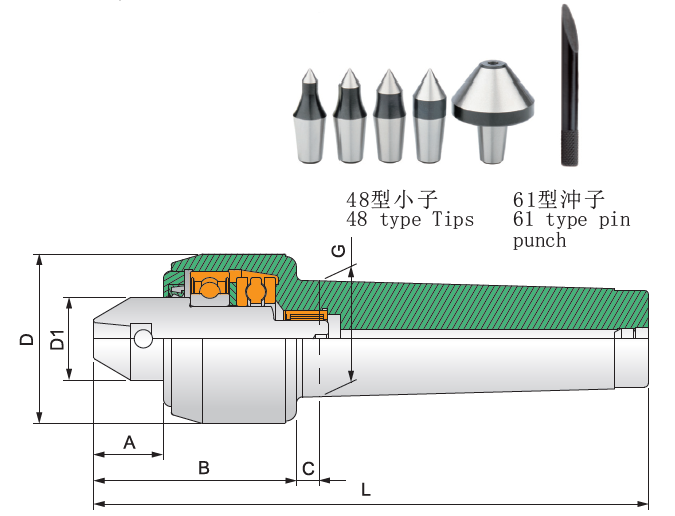

Specification UNIT：mm
|
Model/Spec |
A | B | C | D | D1 | G | L |
Max.RPM |
Max. radial load |
Max. axial thrust force |
|---|---|---|---|---|---|---|---|---|---|---|
| TSC-748-3 | 27 | 78 | 8 | 58 | 31.2 | 23.825（MT3) | 165 | 4,000rpm | 900kg | 2,200kg |
| TSC-748-4 | 27 | 78 | 9 | 65 | 31.2 | 31.267（MT4) | 186 | 4,000rpm | 1,100kg | 2,500kg |
| TSC-748-5 | 27 | 78 | 9 | 65 | 31.2 | 44.399（MT5) | 213 | 4,000rpm | 1,200kg | 2,500kg |
