INTERCHANGEABLE HEAVY DUTY HIGH PERFORMANCE LIVE CENTER
Click on product image magnification
Online inquiry
Type: Interchangeble live center
Duty: Heavy
Application CNC lathe and high speed lathe or other lathe.
Working Usage Applicable for ordinary strong turning process.
Structure Combination of double row ball precise bearing and thrust bearing and needle bearing. With the design of three supporting points.

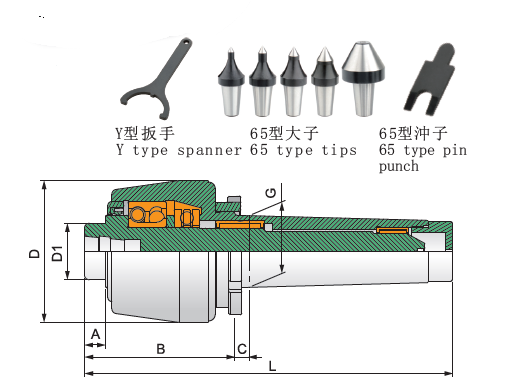

Accessories Y spanner and 65 type Tips and 65 type punch.
TIR Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
?Specification? UNIT：mm
|
Model/Spec |
A | B | C | D | D1 | G | L |
Max.RPM |
Max. radial load |
Max. axial thrust force |
|---|---|---|---|---|---|---|---|---|---|---|
| TSC-265-3A | 15 | 87 | 8 | 58 | 34.8 | 23.825（MT3) | 174 | 6,000rpm | 1,450kg | 1,800kg |
| TSC-265-4A | 15 | 87 | 9 | 65 | 34.8 | 31.267（MT4) | 195 | 6,000rpm | 2,250kg | 2,700kg |
| TSC-265-5A | 15 | 93 | 9 | 75 | 34.8 | 44.399（MT5) | 228 | 6,000rpm | 3,620kg | 3,000kg |
