Type: Interchangeble live center
Duty: Light
Application Ordinary lathe (without waterproof function, can't be used to CNC lathe)
Working Usage Applicable for ordinary turning process.
Structure Made of alloy steel and hardened to HRC 57-60, ground on ID and OD.
Accessories 61 type Tips and 61 type pin punch.
TIR Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the
status of holding the workbar tightly.

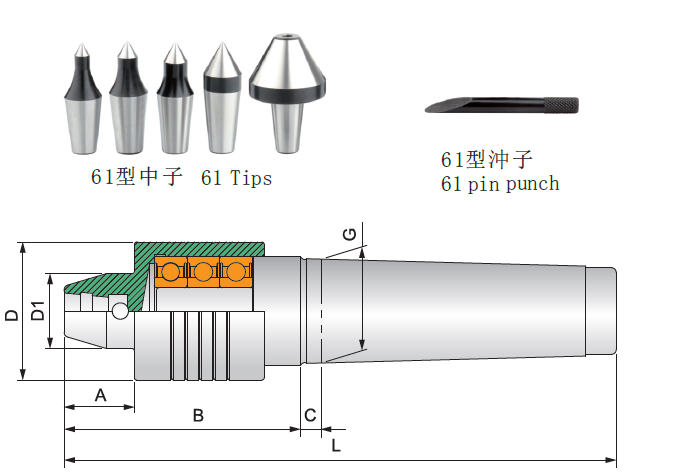

規格 / Specification 單位/ UNIT：mm
|
Model/Spec
|
A
|
B
|
C
|
D
|
D1
|
G
|
L
|
Max.RPM
|
Max. radial load
|
|
SC-91-L-2
|
30
|
95
|
6
|
48
|
32
|
17.780（MT2)
|
164
|
3,500rpm
|
160kg
|
|
SC-91-L-3
|
30
|
95
|
8
|
48
|
32
|
23.825（MT3)
|
182
|
3,000rpm
|
250kg
|
|
SC-91-L-4
|
30
|
95
|
9
|
48
|
32
|
31.267（MT4)
|
203
|
2,600rpm
|
400kg
|
|
SC-91-L-5
|
30
|
101
|
9
|
59
|
32
|
44.399（MT5)
|
236
|
2,200rpm
|
800kg
|
備注：
本頂針指定使用SKF-LGMT2專用潤滑油，請勿使用其他不同成分之潤滑油。
產品型號中有“A”的表示頂針有附螺帽
徑向力數據參考：加工件重量+車削力量
配件中的頂針子，型號有“A”的為加長型頂針子。
軸向力據參考：尾座油壓壓力數據
非標需求可定制
保留技術更改的權利
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
