Type: Live centers series
Duty: Light
Application: Center lathe
Working Usage: Applicable for ordinary turning process, slender workpiece turning process
Structure: Made of alloy steel and hardened to HRC 57-60, ground on ID and OD
TIR Less than 0.002mm
Inspecting the run out accuracy of the center tip must be under the
status of holding the workbar tightly.

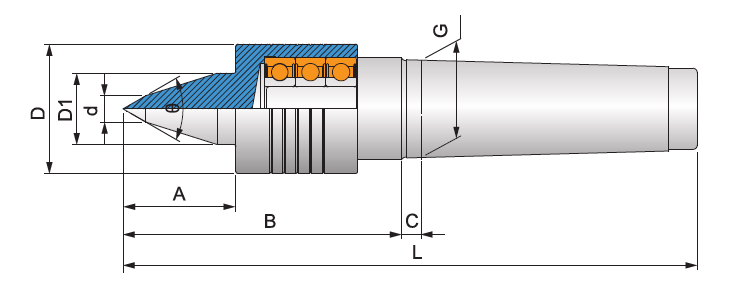

Specification UNIT：mm
|
Model/Spec
|
A
|
B
|
C
|
D
|
D1
|
d
|
G
|
L
|
?
|
Max. RPM
|
Max. axial thrust force
|
|
SC-93-L-2
|
51
|
117
|
6
|
48
|
32
|
12
|
17.780（MT2)
|
186
|
60゜
|
3,500rpm
|
160kg
|
|
SC-93-L-3
|
51
|
117
|
8
|
48
|
32
|
12
|
23.825（MT3)
|
204
|
60゜
|
3,000rpm
|
250kg
|
|
SC-93-L-4
|
51
|
117
|
9
|
48
|
32
|
12
|
31.267（MT4)
|
225
|
60゜
|
2,600rpm
|
400kg
|
|
SC-93-L-5
|
51
|
122
|
9
|
59
|
32
|
12
|
44.399（MT5)
|
257
|
60゜
|
2,200rpm
|
800kg
|
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
