Type: Face driving center,Compensating pins type
Application: CNC lathe and high speed lathe and auto feeder or other machine tool
Working Usage: Without turning the workpiece face and each drive pin can adjust the transmission force,better precision and stability for turning and reversing lathing process
Structure: Adopted the design of mechanical balance structure
TIR: Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the
status of holding the workbar tightly.
Accessories: For SC-66-A group, center pins 09-09 and drive pins 10-10
For SC-66-B group, center pins 09-09 and drive pins 10-13
For SC-66-C group, center pins 09-06 and drive pins 10-17

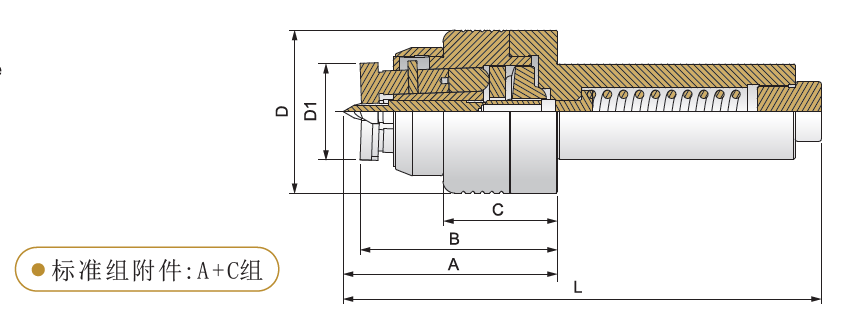

規(guī)格 / Specification 單位/ UNIT：mm
|
Model/Spec
|
A
|
B
|
C
|
D
|
D1
|
L
|
Working range
(mini pin--big pin)
|
|
SC-66-B-40A
|
92
|
82.7
|
48
|
68.5
|
33.5
|
203
|
17--40mm
|
|
SC-66-B-40B
|
92
|
82.7
|
48
|
68.5
|
36.8
|
203
|
15--45mm
|
|
SC-66-B-40C
|
92
|
82.7
|
48
|
68.5
|
40.5
|
203
|
10--50mm
|
Customized order can be accepted.
Subject to technical changes.
