Type: Face driving center,Dead driving head type
Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool.
Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost saving.
Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.
Accessories: MT4 sleeve
Inspecting the run out accuracy of the center tip must be under the
status of holding the workbar tightly.

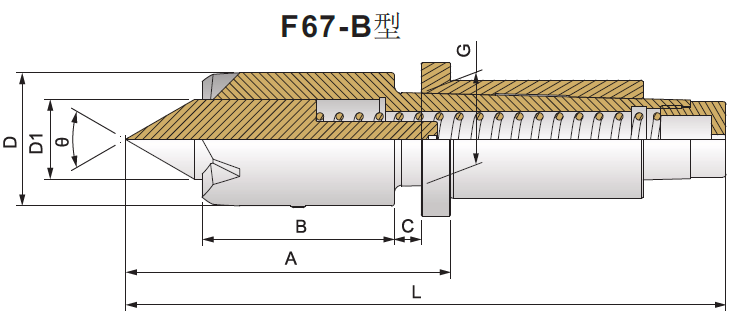

F67-B Series：
Specification UNIT：mm TIR：<0.005mm
|
Model/Spec
|
A
|
B
|
C
|
D
|
D1
|
G
|
L
|
?
|
|
F67-1836-4
|
102
|
65
|
10
|
36
|
18
|
31.267(MT4)
|
195
|
60°
|
|
F67-2240-4
|
107
|
67
|
10
|
40
|
22
|
31.267(MT4)
|
200
|
60°
|
|
F67-2745-4
|
115
|
70
|
10
|
45
|
27
|
31.267(MT4)
|
207
|
60°
|
F67-2240-5
|
107
|
67
|
10
|
40
|
22
|
44.399(MT5)
|
200
|
60°
|
F67-2745-5
|
115
|
70
|
10
|
45
|
27
|
44.399(MT5)
|
207
|
60°
|
Customized order can be accepted.
Subject to technical changes.
