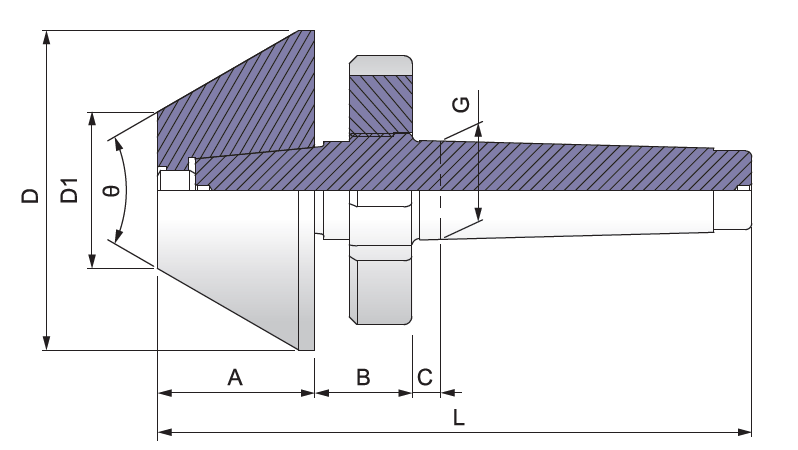

Type: Bull nose centers,Interchangeable
Application: CNC lathe and other machine tool.
Working Usage: Applicable for big size inner diameter workpiece turning process.
Notes:
Inspecting the run out accuracy of the center tip must be under the
status of holding the workbar tightly.
Specification UNIT：mm TIR：<0.005mm
|
Model/Spec
|
A
|
B
|
C
|
D
|
D1
|
G
|
L
|
?
|
|
TSC-96880-3"-3A
|
50
|
31
|
8
|
76.2
|
24.2
|
23.825(MT3)
|
168
|
60゜
|
|
TSC-96880-4"-3A
|
50
|
31
|
8
|
101.6
|
49.6
|
23.825(MT3)
|
168
|
60゜
|
|
TSC-96880-5"-3A
|
50
|
31
|
8
|
127
|
75
|
23.825(MT3)
|
168
|
60゜
|
|
TSC-96880-6"-3A
|
50
|
31
|
8
|
152.4
|
100.4
|
23.825(MT3)
|
168
|
60゜
|
|
TSC-96880-3"-4A
|
50
|
31
|
9
|
76.2
|
24.2
|
31.267(MT4)
|
189
|
60゜
|
|
TSC-96880-4"-4A
|
50
|
31
|
9
|
101.6
|
49.6
|
31.267(MT4)
|
189
|
60゜
|
|
TSC-96880-5"-4A
|
50
|
31
|
9
|
127
|
75
|
31.267(MT4)
|
189
|
60゜
|
|
TSC-96880-6"-4A
|
50
|
31
|
9
|
152.4
|
100.4
|
31.267(MT4)
|
189
|
60゜
|
Customized order can be accepted.
Subject to technical changes.
