TSC-9062 SERIES
MEDIUM DUTY LIGHT TYPE LIVE CENTER
Application: CNC lathe, high speed lathe, other lathe machine
Working Usage: Applicable for the length less than 400mm and light turning process
There is a model with Tungsten tip：TSC-9062-TS14-4
TIR: Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the
status of holding the workbar tightly.

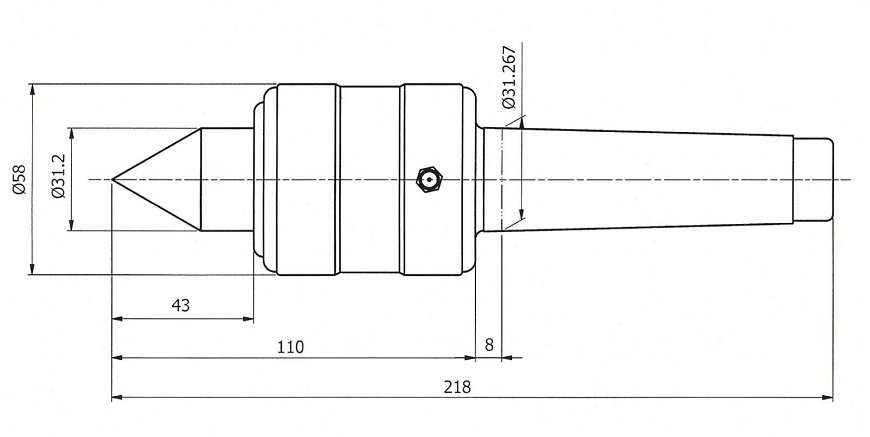

TSC-9062-4 Drawing

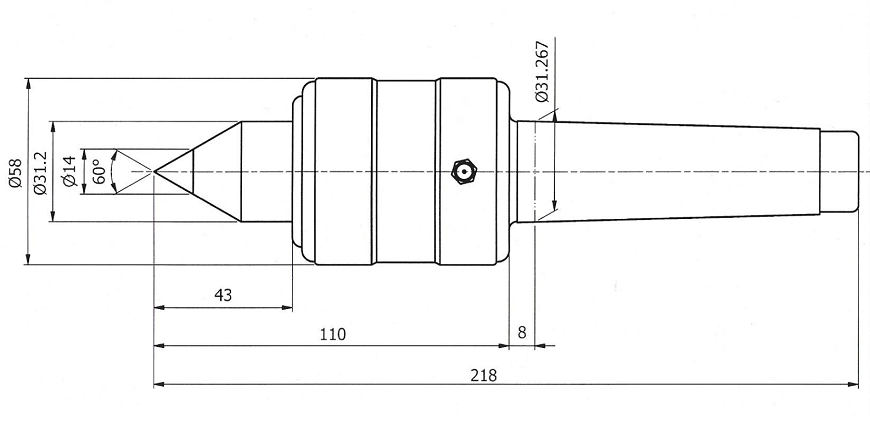

TSC-9062-TS14-4 規(guī)格圖/Drawing
|
Model/Spec
|
MT
|
Max. RPM
|
Max. radial load
|
Max. axial thrust force
|
|
TSC-9062-4
|
31.267（MT4)
|
3500
|
1000
|
1500
|
|
TSC-9062-TS14-4
|
31.267（MT4)
|
3500
|
1000
|
1500
|
Accessories Page
Center technical user manual
Subject to technology changes without prior information
Non-standard requirements can be made
