Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Description

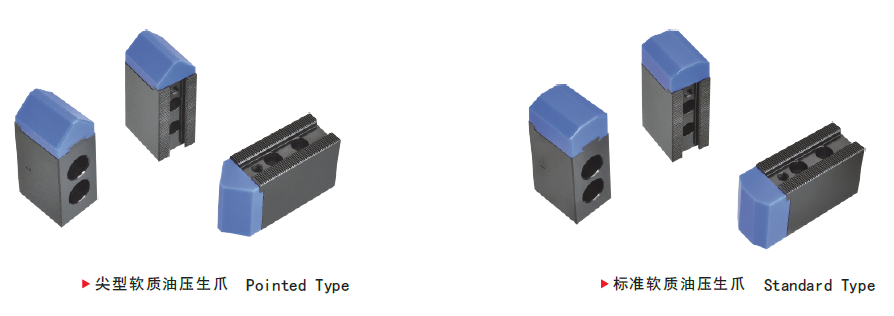

The POM/MC head is tight fit with steel parts, can′t be changed,it can improve the gripping stability and protect the work piece surface.

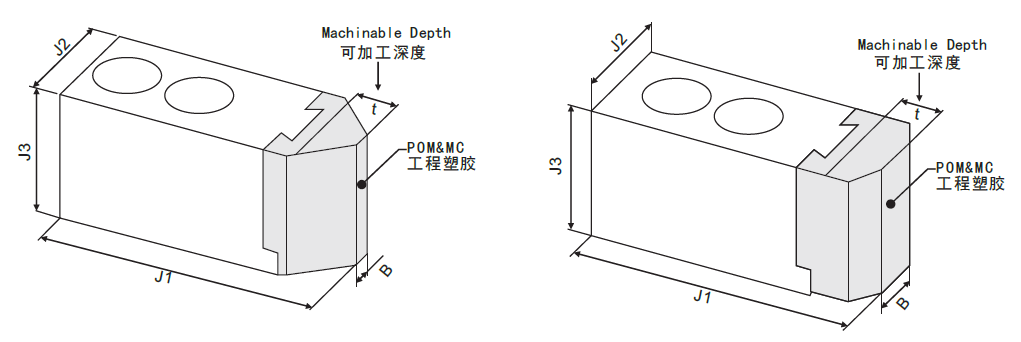

UNIT:mm
|
Model
|
Size(mm)
|
Angle
|
|
|
|
J1
|
J2
|
J3
|
B
|
t
|
|
|
SN-06
|
73
|
31
|
37
|
14
|
8
|
120
|
|
SN06P90
|
73
|
31
|
37
|
5
|
8
|
90
|
|
SN-08
|
95
|
35
|
38
|
16
|
13
|
120
|
|
SN08P90
|
95
|
35
|
38
|
5
|
13
|
90
|
|
SN-10
|
110
|
40
|
42
|
18
|
18
|
120
|
|
SN10P90
|
110
|
40
|
42
|
5
|
18
|
90
|
Other option of serration pitch: 3.0*60°
Subject to technical changes
