Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
|

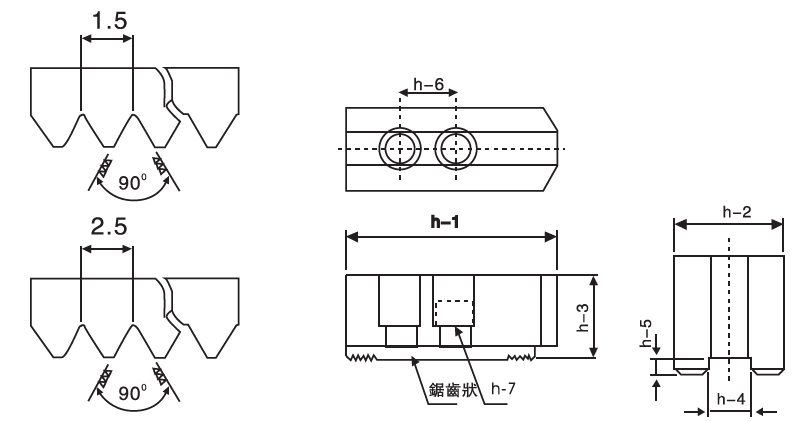

MODELS/DIMENSION
|
Length
h-1
|
Width
h-2
|
Height
h-3
|
Slot width
h-4
|
Slot depth
h-5
|
Hole center
distance
h-6
|
Screw
h-7
|
Serration pitch
|
|
CH-125
|
56
|
25
|
32
|
11
|
3.5
|
16
|
M8
|
1.5×90°
|
|
CH-160
|
70
|
35
|
42
|
13
|
4
|
20
|
M10
|
1.5×90°
|
|
CH-200
|
82
|
40
|
46
|
16
|
4
|
24
|
M12
|
1.5×90°
|
|
CH-250
|
95
|
45
|
50
|
17
|
4
|
28
|
M12
|
1.5×90°
|
|
CH-315
|
118
|
50
|
62
|
21
|
4
|
32
|
M16
|
2.5×90°
|
|
CH-400
|
148
|
55
|
72
|
22
|
5
|
45
|
M16
|
2.5×90°
|
Other option of serration pitch: 3.0*60°
Subject to technical changes
