Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

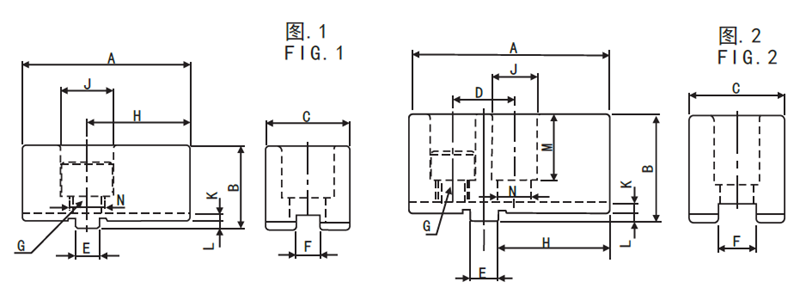

Size table? ? ?UNIT:mm
|
MODEL/SPEC
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
N
|
Reference
drawing
|
|
S-04
|
52
|
19.5
|
25
|
?
|
8
|
8
|
M10*1.5P
|
30
|
17.5
|
2.5
|
2.5
|
13
|
11
|
?fig.1
|
|
S-05
|
56
|
27
|
30
|
?
|
8
|
8
|
M12
|
33
|
20
|
2.5
|
2.5
|
15
|
11
|
fig.2
|
|
S-06
|
70
|
34
|
35
|
?
|
10
|
10
|
M14*2P
|
43
|
23
|
3
|
3
|
21
|
15.5
|
fig.2
|
|
S-08
|
84
|
44.5
|
40
|
26
|
12
|
16
|
M12*1.75P
|
53
|
20
|
3.5
|
3.5
|
29
|
13.5
|
?fig.2
|
|
S-10
|
100
|
49.5
|
50
|
32
|
15
|
18
|
M14*2P
|
62
|
23
|
3.5
|
3.5
|
32
|
15.5
|
fig.1
|
|
S-12
|
120
|
54.5
|
60
|
36
|
17
|
20
|
M16*2P
|
78
|
26
|
3.5
|
3.5
|
36
|
17.5
|
fig.1
|
|
S-15
|
165
|
60
|
70
|
40
|
20
|
24
|
M17*2P
|
105
|
26
|
5
|
5
|
40
|
18
|
?
|
Subject to technical changes
