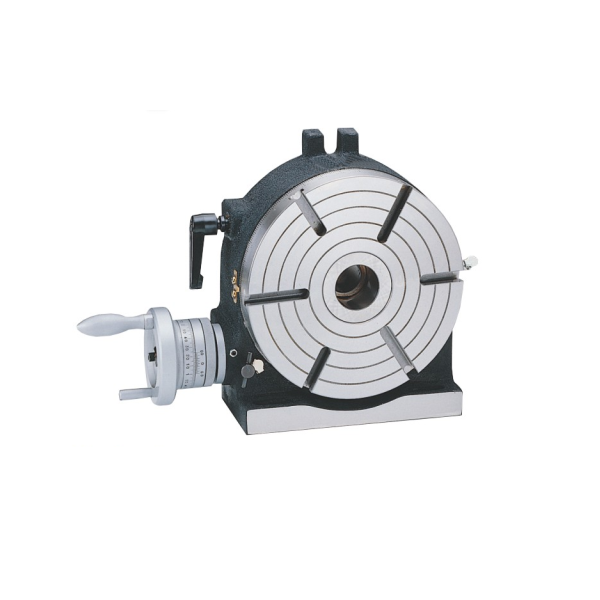

FEATURES:
1.The machine is supported by multiple-point force and sturdy.It can overcome the downward twisting force when vertical working disc holds heavy thing.
2.A dopt single-handle and two-stage design for fastening ,adjust loose and tightess of rotary disc,and control the vibration during processing.The second-stage fastening can provide non-vibrating condition during cut-off.
3.Main shaft adopt two-stage design,enlarge fore internal cavity.(we can enlarge internal cavities if necessary).After section internal cavity can help to fasten the depth control of processing products.
|
Item
|
Inspection items
|
Tolerance
mm
|
|
1
|
Plainity of rotary disc’s plain surface
|
0.015
|
|
2
|
Parallelity of rotary disc’s plain surface and pedestal
|
0.02
|
|
3
|
Verticality between plain surface during rotation
|
0.02
|
|
4
|
Plainity of plain surface during rotation
|
0.015
|
|
5
|
Concentricity of plain surface’s center opening
|
0.02
|
|
6
|
Cut-off precision
|
4.5"
|
|

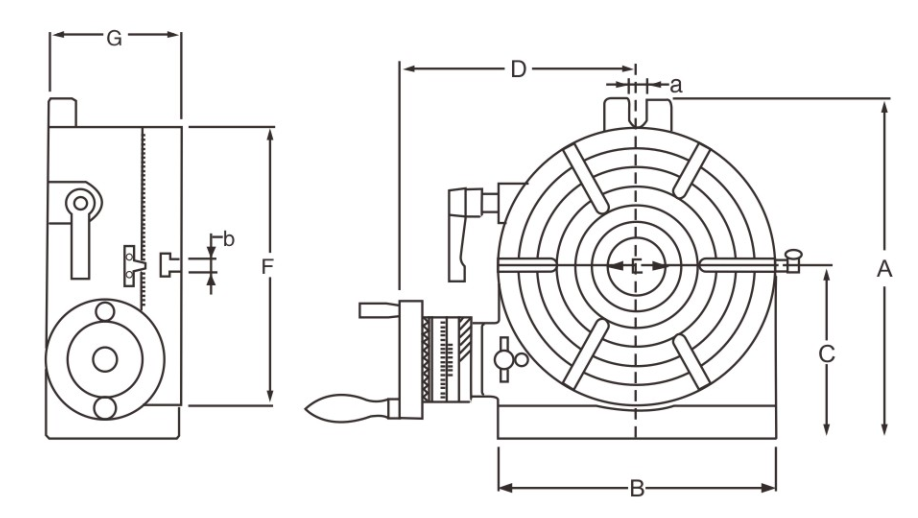

Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
a
|
b
|
G.W
|
|
HV-200
|
280
|
200
|
150
|
215
|
50(MT4)
|
200
|
120
|
16
|
12
|
33kg
|
|
HV-250
|
310
|
250
|
155
|
217
|
50(MT4)
|
250
|
120
|
16
|
12
|
43kg
|
|
HV-300
|
365
|
300
|
180
|
252
|
50(MT4)
|
300
|
120
|
16
|
12
|
57kg
|

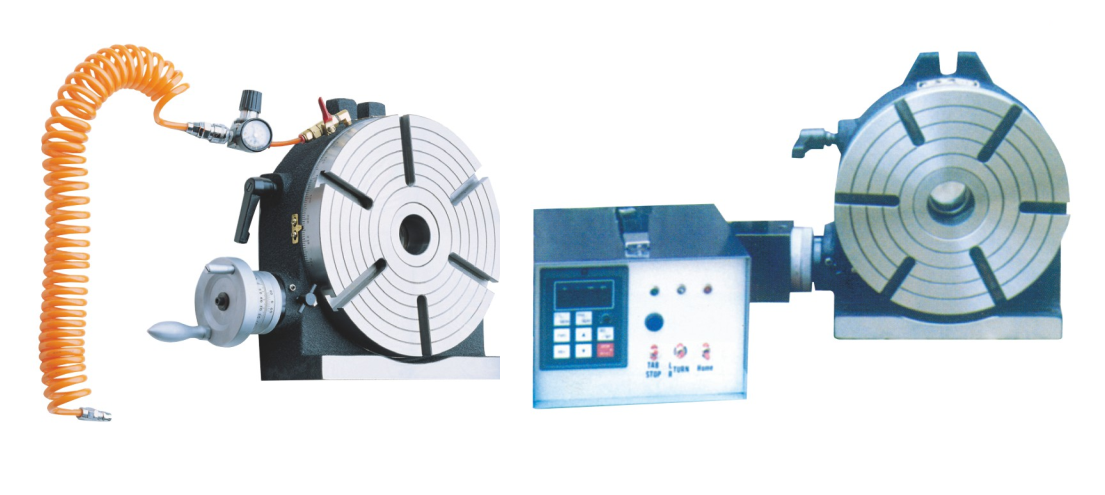

Application:
