Compact design reduces interference
The standard jaws can accommodate removable hardalloy clamps
Extremely shallow workpiece clamping depth and nopre-processing required
The clamping range is large
Flexible use
Self-centering clamping, manual operation
The centers of the workpieces are always in the sameposition
Flexible installation, can be installed in either direction
It can be installed on the worktable of a machine tool
It comes with a standard interface for the conventionalzero-point positioning system
|
型號
MODEL
|
Jaw Width
|
Jaw Height
|
Torque(Nm)
|
Clamping Force(KN)
|
Repetitive Positioning
Accuracy(mm)
|
Body Material
|
Jaw Material
|
|

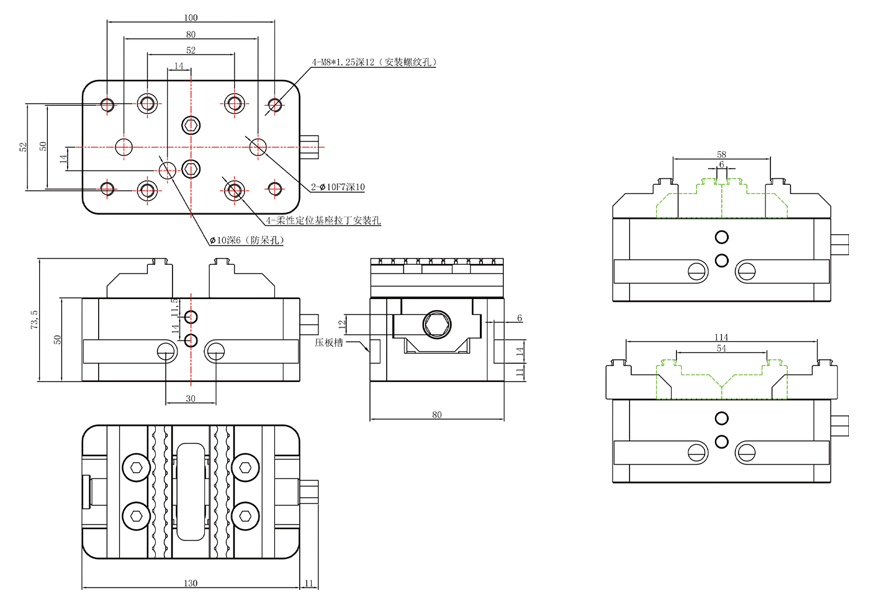

NH03-FR-130
|
79
|
23.5
|
85
|
20
|
0.02
|
40CrNiMo
|
Cr12Mov
|
|
型號
MODEL
|
Jaw Width
|
Jaw Height
|
Torque(Nm)
|
Clamping Force(KN)
|
Repetitive Positioning
Accuracy(mm)
|
Body Material
|
Jaw Material
|
|

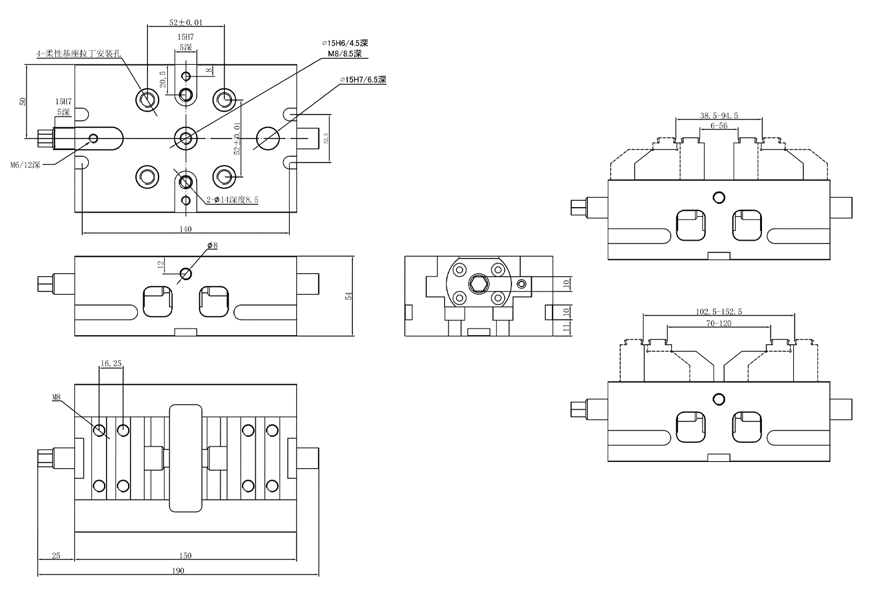

NH03-FD-150
|
100
|
28.5
|
23
|
13
|
0.02
|
40CrNiMo
|
Cr12Mov
|
|
型號
MODEL
|
Jaw Width
|
Jaw Height
|
Torque(Nm)
|
Clamping Force(KN)
|
Repetitive Positioning
Accuracy(mm)
|
Body Material
|
Jaw Material
|
|
NH03-FR-320
|
126
|
30
|
63
|
30
|
0.02
|
40CrNiMo
|
Cr12Mov
|
