JAP100 PNEUMATIC DIAPHRAGM CHUCK
Click on product image magnification
Online inquiryBrand：NTH
Repeatability is within 0.005mm.
Air cylinder is integrated: no rotary cylinder or draw tube is required.
Real front-mounting design allows easy installation.
Highly-sealed chuck body helps protect cutting chips, dust or coolant fluid from entering.
Gentle and precise clamping: suitable for fragile parts clamping.
O.D. clamping / I.D. expanding chuck possible by changing different jaw pads.
?Introduction
NTH JAP100 Cylinder-Integrated Pneumatic Diaphragm?Chuck provides you with a high accuracy yet hassle-free??diaphragm chucking solution, saving you from the trouble?of installing rotary cylinders, tailor making any draw?tubes or air feeders. And with its real front-mounting?design, the installation is revolutionarily easier than ever.
Application
Precision bushings.
DVD spindle motor assembly.
Bearing collars, bearing rings.
Parts of cameras' lens module, thickness less than 0.7mm.
PCB drill bits.
Cylinder sleeve of air hand tools.
Thin-wall parts. Fragile parts.
Piston and cylinder of mini engines.

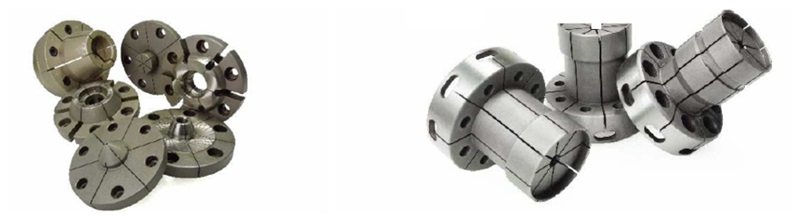

?JAP100 diaphragm jaw pad
High quality steel alloy, hardened to HRC 50 or Semi-HRC 40(can be turned).
Rapid delivery: regular type in 10 days and 20 days for the customized.
?JAP100 series pneumatic collet chuck spec.
| ?Model | JAP104 | JAP105 | JAP106 |
|---|---|---|---|
| A | 101（3.98〞） | 137(5.37〞) | 166(6.54〞) |
| B | 60（2.36〞） | 70(2.76〞) | 100(3.94〞) |
| C | 4.0（0.16〞） | 3.5(0.14〞) | 5.5(0.22〞) |
| D | 10（0.39〞） | 12(0.47〞) | 42(1.65〞) |
| E | 70（2.76〞） | 100(3.94〞) | 130(5.12〞) |
| F(P.C.D) | 82（3.23〞） | 115(4.53〞) | 147(5.79〞) |
| G | 97（3.82〞） | 135(5.31〞) | 167(6.57〞) |
| H | 73（2.87〞） | 90(3.54〞) | 107(4.21〞) |
|
Mounting bolts
|
4H-M6(Front) |
3H-M8(Front) 3H-M8(Rear) |
3H-M10(Front) 3H-M10(Rear) |
|
Max RPM
|
4000 | 3400 | 2400 |
|
Air Pressure
|
0.5-7kg/cm2(7-100psi) | 0.5-7kg/cm2(7-100psi) | 0.5-7kg/cm2(7-100psi) |
|
Jaw Stroke (Dia)
|
0.20mm(0.008〞) | 0.20mm(0.008〞) | 0.20mm(0.008〞) |
|
Through Hole
|
10mm(0.39〞) | 14mm(0.57〞) | 14mm(1.65〞) |
|
Non thru Max Clamping
|
42mm(1.65〞) | 50mm(1.93〞) | 78mm(3.07〞) |
|
N.W.
|
2.8kgs(6.2lbs) | 6.0kgs(13.2lbs) | 9.5kgs(20.9lbs) |
?JAP100 diaphragm jaw pad spec.
|
MODEL |
A | B | C | D | F | G | H |
Jaw split
|
?Where used |
| JD-60 | 65mm | 52mm | 45mm | 32mm | 12mm | 4.0mm | 4.5mm | 6 | JAP104 |
| JD-60 | (2.56〞) | (2.05〞) | (1.77〞) | (1.26〞) | (0.47〞) | (0.16〞) | (0.18〞) | 6 | JAP104 |
| JD-70 | 75mm | 60mm | 50mm | 37mm | 14mm | 5.0mm | 5.0mm | 6 | JAP105 |
| JD-70 | (2.95〞) | (2.36〞) | (1.97〞) | (1.46〞) | (0.55〞) | (0.20〞) | (0.20〞) | 6 | JAP105 |
| JD-100 | 105mm | 90mm | 80.2mm | 65mm | 14mm | 5.5mm | 5.0mm | 8 | JAP106 |
| JD-100 | (4.13〞) | (3.54〞) | (3.16〞) | (2.56〞) | (0.55〞) | (0.22〞) | (0.20〞) | 8 | JAP106 |
