For vertical lathe, milling machine and drilling process.
Through hole design for clamping long bore workpiece, both vertical and horizontal production.
Unit : mm
|
Model/size
|
Piston Dia.
(mm)
|
Eff. piston area
(cm2 )
extend / retract
|
Max tube power
(kgf)
Extend / Retract
|
Piston Stroke
(mm)
|
Max Hydraulic pressure
(kgf / cm2)
|
Weight
(kg)
|
For Chucks
|
|
DV-6
|
?115
|
104
/ 78.5
|
1900
/ 1400
|
20
|
20
|
12
|
V-206
|
|
DV-8
|
?155
|
187
/ 148.6
|
3600
/ 2800
|
21
|
20
|
21
|
V-208,
V-210, V-212
|
|
DN-8
|
?155
|
148.6
/ 148.6
|
2800
/ 2800
|
17
|
20
|
28.5
|
N-208
|
|
Model/size
|
A1
|
A2
|
A3
|
A4
|
A5
|
A6
|
B1
|
B2
|
B3
|
H
|
|
DV-6
|
?220
|
168
|
140
|
55
|
?220
|
49
|
16
|
65.5
|
5.5
|
104.78
|
|
DV-8
|
?290
|
210
|
170
|
70
|
242
|
58
|
24
|
86
|
5.5
|
133.35
|
|
DN-8
|
?293
|
213
|
170
|
70
|
242
|
52
|
24
|
100
|
5.5
|
133.35
|
|
Model/size
|
K
|
L1
|
L2
|
Pmax.
|
Pmin.
|
S1
|
S2
|
S3
|
U
|

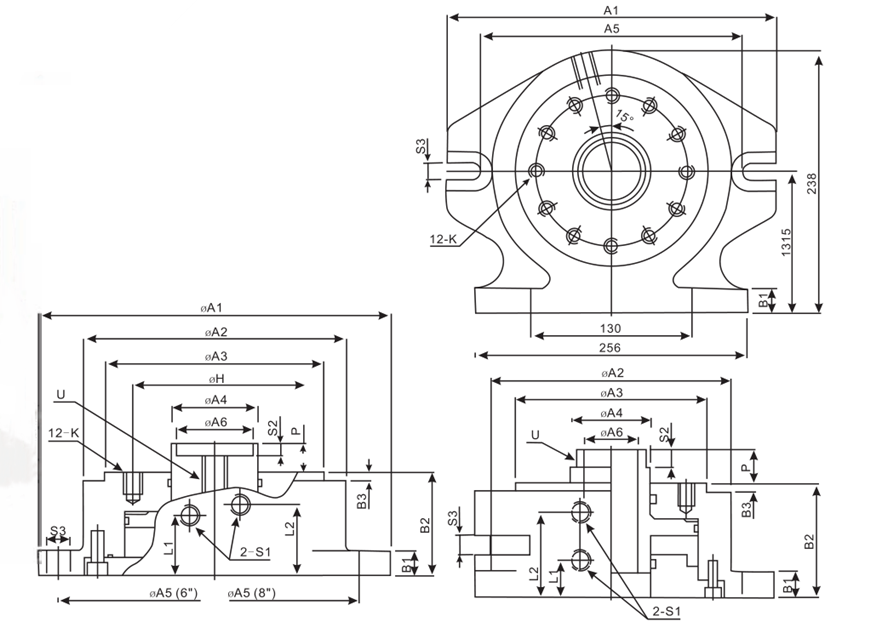

Illutration
|
|
DV-6
|
12-M10x16L
|
38
|
45
|
18
|
-2
|
PT
1/4"
|
7.6
|
2-?15
|
M16xP2.0
|
Fig-1
|
|
DV-8
|
12-M12x18L
|
23
|
65
|
20
|
-1
|
PT
1/4"
|
5.5
|
2-16
|
M16xP2.0
|
Fig-1
|
|
DN-8
|
12-M12x18L
|
32.5
|
74.5
|
30.4
|
13.4
|
PT 1/4"
|
16
|
4-17
|
M60xP2.0
|
Fig-2
|
