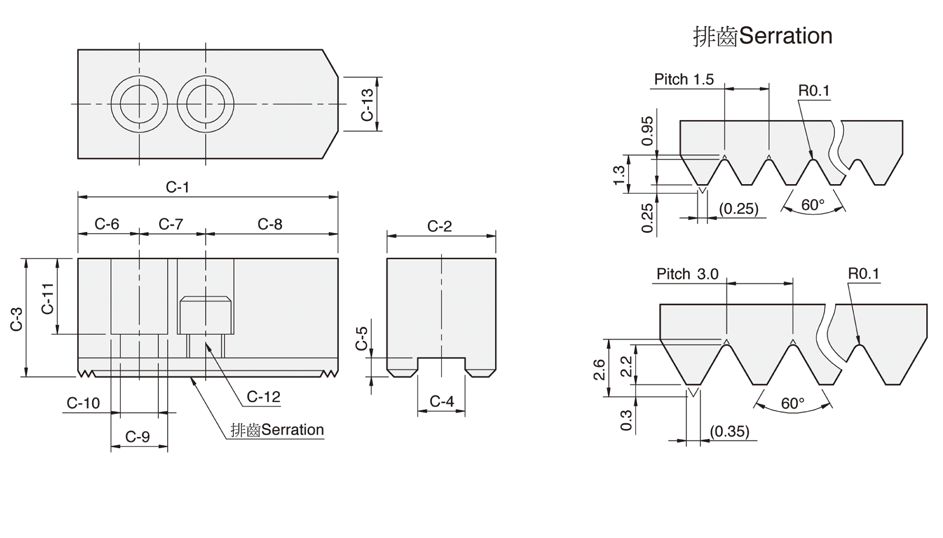

Suitable for the Hydraulic chuck and the CNC lathe
Unit : mm
|
Model/size
|
C-1
|
C-2
|
C-3
|
C-4
|
C-5
|
C-6
|
C-7
|
C-8
|
C-9
|
C-10
|
C-11
|
C-12
|
C-13
|
serration pitch
|
For chucks
|
Weight for 3 jaws
(kg)
|
|
HC04
|
53
|
23
|
23
|
10
|
5
|
9
|
14
|
30
|
14
|
9
|
14
|
M8
|
30
|
1.5x60°
|
N-204
|
0.45
|
|
HC05
|
62
|
25
|
30
|
10
|
5
|
9
|
14
|
39
|
14
|
9
|
21
|
M8
|
5
|
1.5x60°
|
N-205
|
0.7
|
|
HC06
|
73
|
31
|
36
|
12
|
5
|
15
|
20
|
38
|
17
|
11
|
21
|
M10
|
14
|
1.5x60°
|
N-206,
NB-306, V-206
|
1.5
|
|
HC08
|
95
|
35
|
37
|
14
|
5
|
24
|
25
|
46
|
19
|
13
|
22
|
M12
|
16
|
1.5x60°
|
N-208,
NB-208, V-208
|
2.4
|
|
HC10
|
110
|
40
|
42
|
16
|
5
|
30
|
30
|
50
|
19
|
13
|
27
|
M12
|
18
|
1.5x60°
|
N-210,
NB-210, V-210
|
3.7
|
|
HC12
|
130
|
50
|
50
|
21
|
5
|
39
|
30
|
61
|
25
|
17
|
33
|
M16
|
23
|
1.5x60°
|
N-212,
NB-212
|
6.5
|
|
HC15
|
165
|
62
|
62
|
22
|
8
|
37
|
43
|
85
|
32
|
21
|
38
|
M20
|
–
|
1.5x60°
|
N-215,
N-218, NB-215, NB-218
|
12.5
|
|
HC08-1
|
95
|
35
|
37
|
12
|
5
|
24
|
20
|
51
|
17
|
11
|
21
|
M10
|
14
|
1.5x60°
|
NHT-208
|
2.4
|
|
HC12-1
|
130
|
50
|
50
|
18
|
5
|
39
|
30
|
61
|
23
|
15
|
30
|
M14
|
23
|
1.5x60°
|
V-212,
V-212R
|
6.6
|
|
HC15-1
|
165
|
62
|
62
|
25.5
|
5
|
37
|
43
|
85
|
32
|
21
|
38
|
M20
|
–
|
1.5x60°
|
V-215,
V-218, V-215R, V-218R
|
12.5
|
|
HC24-1
|
180
|
64
|
70
|
25
|
9
|
40
|
60
|
80
|
32
|
21
|
45
|
M20
|
–
|
3.0x60°
|
N-220,
N-224, V-221, V-224,V-221R,V-224R
|
15.8
|
|
HC32-1
|
210
|
74
|
90
|
25
|
9
|
40
|
80
|
90
|
32
|
21
|
65
|
M20
|
–
|
3.0x60°
|
V-232
|
29.2
|
|
HC15-2
|
156
|
64
|
70
|
26
|
9
|
34
|
50
|
72
|
32
|
21
|
45
|
M20
|
–
|
3.0x60°
|
V-215(P3.0).V-218(P3.0).
|
13.4
|

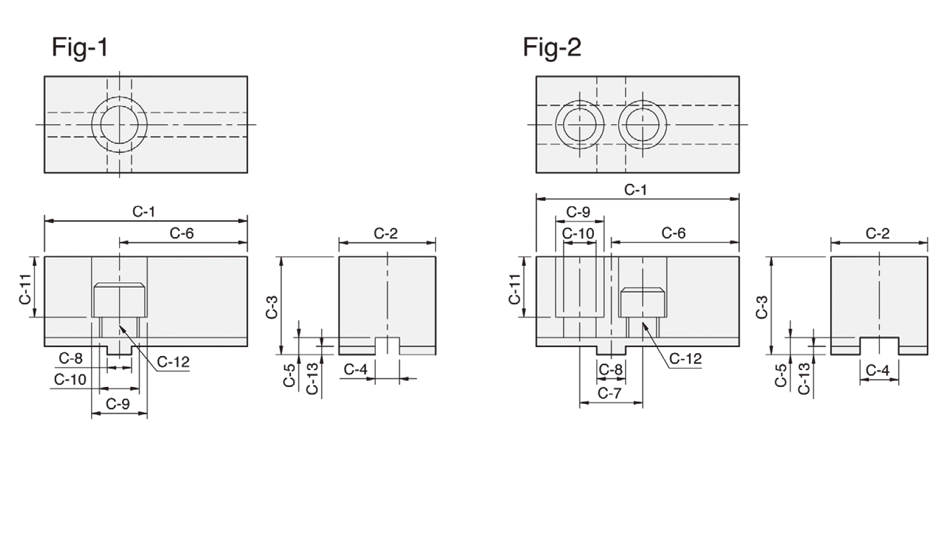

Soft jaw for draw down power chuck
Unit : mm
|
Model/size
|
C-1
|
C-2
|
C-3
|
C-4
|
C-5
|
C-6
|
C-7
|
C-8
|
C-9
|
C-10
|
C-11
|
C-12
|
C-13
|
for chucks
|
Weight (3 Jaws)
(kg)
|
Illustration
|
|
DR-06
|
70
|
35
|
34
|
10
|
6
|
43
|
–
|
10
|
23
|
15.5
|
21
|
M14
|
2.5
|
DR-6
|
1.5
|
Fig-1
|
|
DR-08
|
84
|
40
|
44.5
|
16
|
7
|
53
|
26
|
12
|
20
|
13.5
|
29
|
M12
|
3.5
|
DR-8
|
2.7
|
Fig-2
|
Soft jaw for ball swing lock chuck
Unit: mm
|
Model/size
|
C-1
|
C-2
|
C-3
|
C-4
|
C-5
|
C-6
|
C-7
|
C-9
|
C-10
|
C-11
|
C-12
|
For chucks
|
Weight(3 Jaws)
(kg)
|
|
BL-12
|
108
|
70
|
70
|
57.1
|
3.3
|
19
|
44.45
|
25
|
17
|
59
|
M16
|
BL-12
|
10.6
|

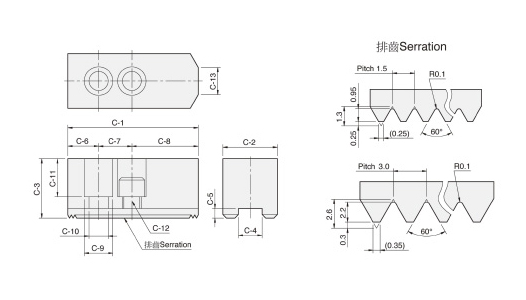

Soft jaws for pneumatic power chuck
unit: mm
|
Model/size
|
C-1
|
C-2
|
C-3
|
C-4
|
C-5
|
C-6
|
C-7
|
C-8
|
C-9
|
C-10
|
C-11
|
C-12
|
C-13
|
For chucks
|
Weight(3-jaw)
(kg)
|
|
PB600
|
205
|
60
|
60
|
25.5
|
6
|
25
|
38
|
104
|
32
|
21
|
44
|
M20
|
55
|
PB-ES600
|
13.5
|
|
PB850
|
320
|
80
|
80
|
30
|
7
|
35
|
60
|
165
|
38
|
26
|
53
|
M24
|
110.5
|
PB-ES850
|
40.2
|
